This is a highly-versatile inspection system well suited for production lines and laboratories alike. The ultra-sharp 0.7X-5X zoom lens produces highly-corrected, color-accurate images. Using a single objective ensures maximum depth-of-field and even focus, and is recommended over stereo microscopes when producing photos and video are the main goals.
The 4K camera produces stunning, ultra-high definition video and photos. Operating as a stand-alone system, the camera can stream 4K video at 30fps over HDMI. A built-in software interface provides tools for image-adjustment and measurement -- perfect for QC workflows and laboratory growth analysis. Videos and photos can be recorded to SecureDigital media or USB storage devices.
The functionality doesn't stop there. The camera can be integrated into your computer network over LAN or Wi-fi, with full-featured microscopy software to expand the camera's abilities. Features include image-stitching and focus-stacking, time-lapse capture, segmentation and counting tools, and much more. The camera can be accessed over a network for remote capture during isolated experiments or long-term monitoring.

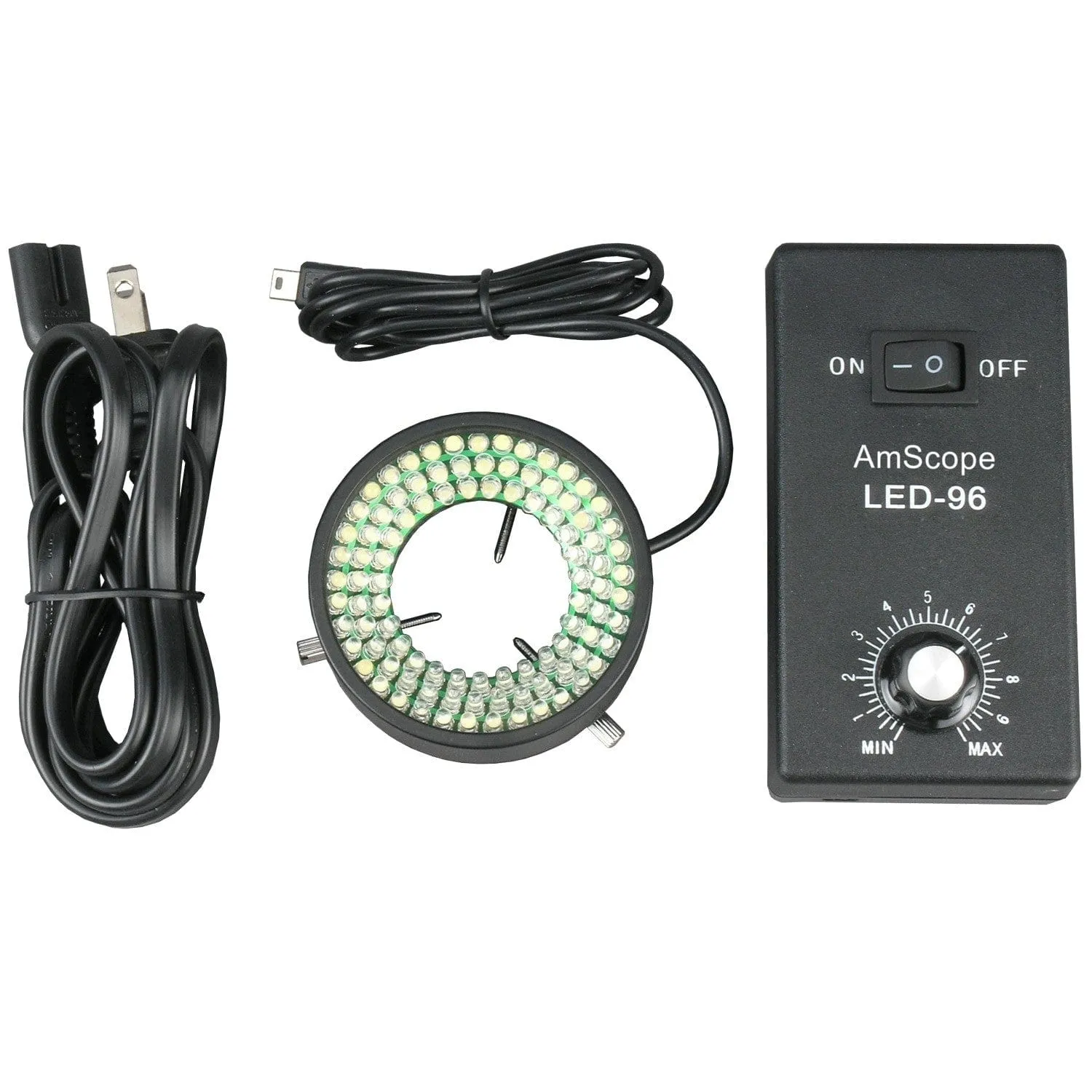

A 96-LED variable-intensity ring-light provides bright, low-heat, even illumination. Designed specifically for this lens, the ring-light evenly distributes light for optimal results.
Features:
Microscope Specifications :
Camera Specifications
| Sensor | Sensor Type | Sensor Size | Pixels | Pixel Size |
|---|---|---|---|---|
| Sony IMX334 (color) | CMOS | 1/1.8" class (7.68mm x 4.32mm) | 8.3M (3840 x 2160) | 2µm x 2µm |
| Sensitivity
?
|
Dark Signal | Shutter | Frame Rate(s) |
|---|---|---|---|
| 505mV @ 1/30s (f5.6) | 0.1mV @ 1/30s | Rolling | 30 @ 3840x2160 (HDMI) 30 @ 3840x2160 (record) |

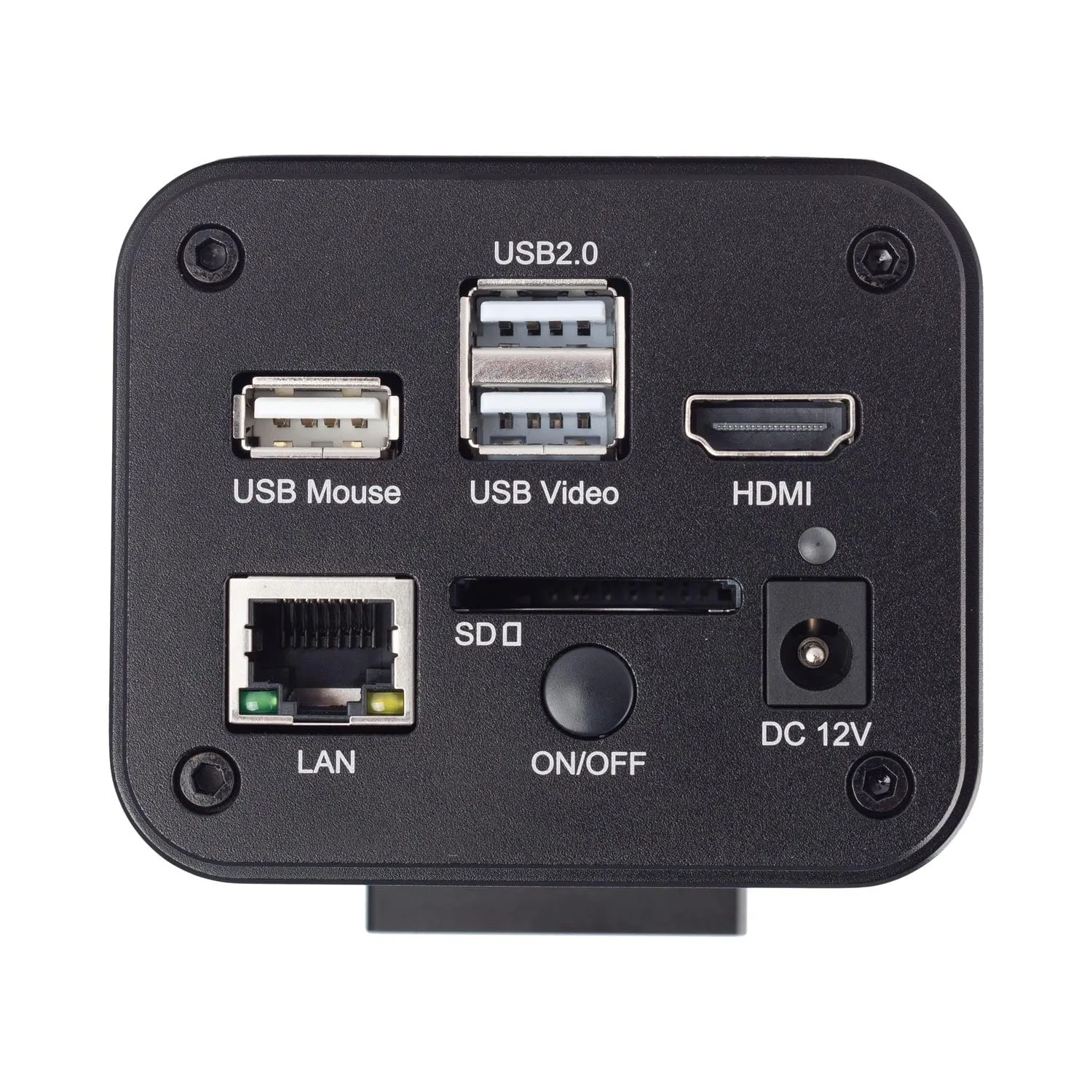

| Memory Card Slot | Video Out | USB | Ethernet | Lens-mount | Compensating Lens |
|---|---|---|---|---|---|
| 1 x SD SDIO 3.0 media required for 4K recording |
1 x HDMI | 1 x USB (mouse) 2 x USB 2.0 (external media, PC) |
1 x RJ45 GigE | C-mount | -- |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10/11, Mac OS 10.8 , Linux kernel 3.13 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed | ||||||||||||||||||
| Features |
|

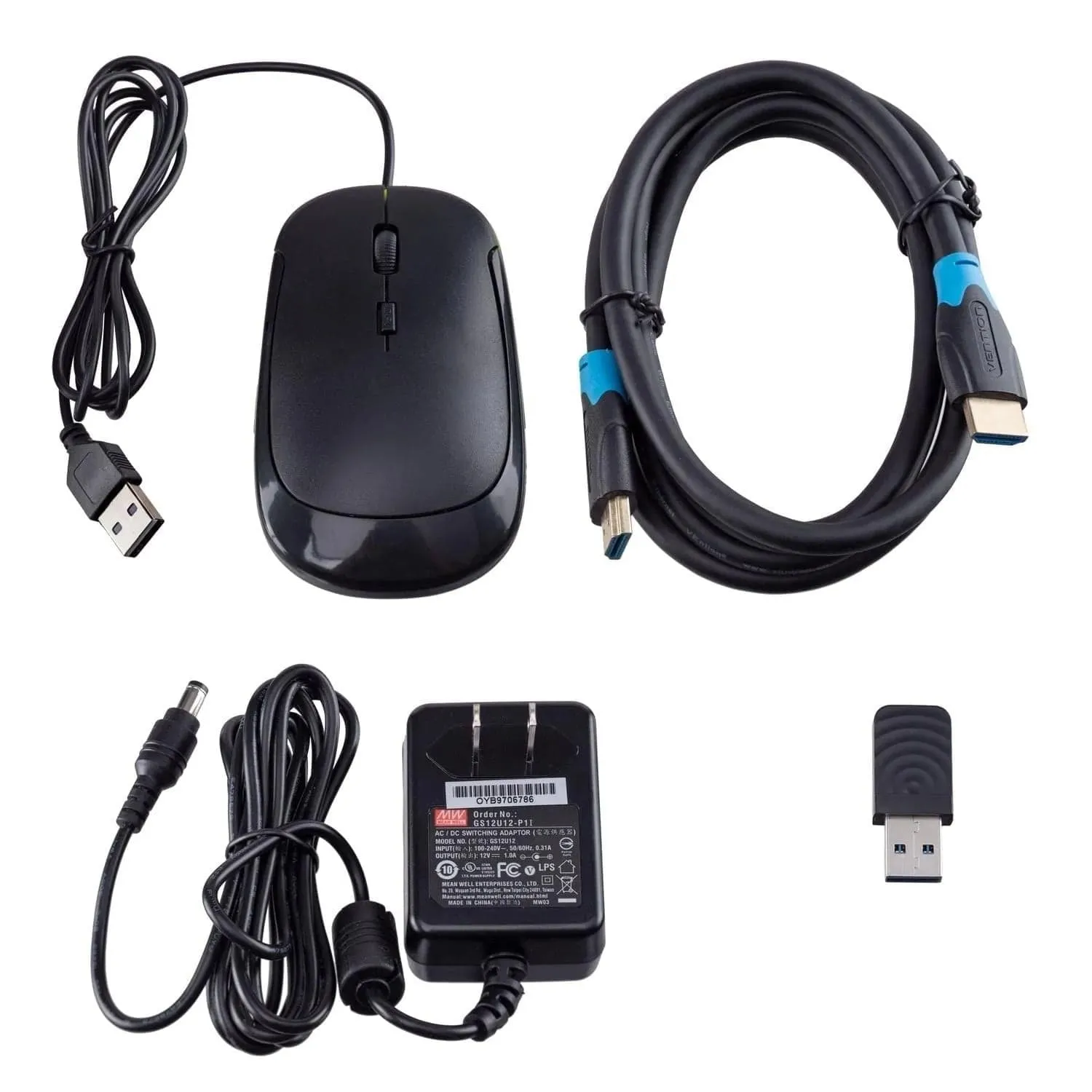

Packing List :
