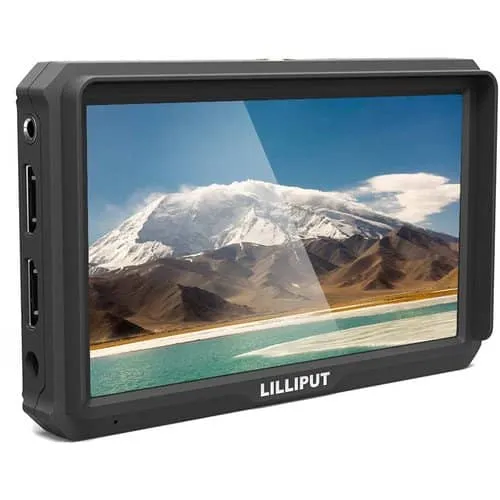

Lilliput 5" 4K HDMI Full HD On-Camera Monitor

This compact, lightweight, fully-featured A5 5" On-Camera Monitor from Lilliput is designed to take on almost any production. The 1920 x 1080 LCD screen features 460 cd/m² brightness, a 1000:1 contrast ratio, and a 170° viewing angle. It's HDMI 1.4 input is compatible with DSLRs, mirrorless cameras, and professional camcorders and can input up to UHD 4K 3840 x 2160 video at 30 fps. It also features a loop-through HDMI output for additional displays.

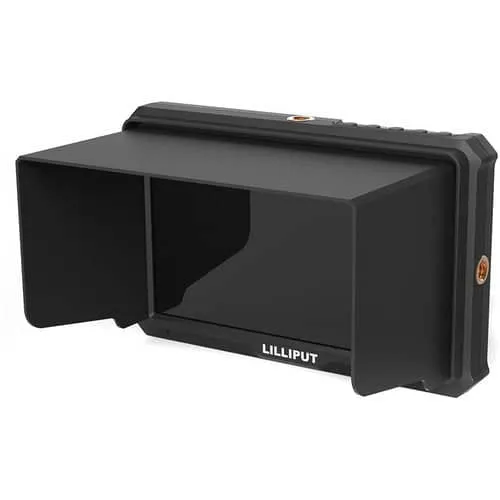

A built-in, dual-purpose NP-F / LP-E6 battery plate is provided to power the monitor. When shooting outdoors, the included sun hood makes the screen easier to see by blocking any glare. An included articulating shoe mount attaches to the monitor's 1/4"-20 mounting thread and allows you to secure the A5 to your camera via a standard accessory shoe.

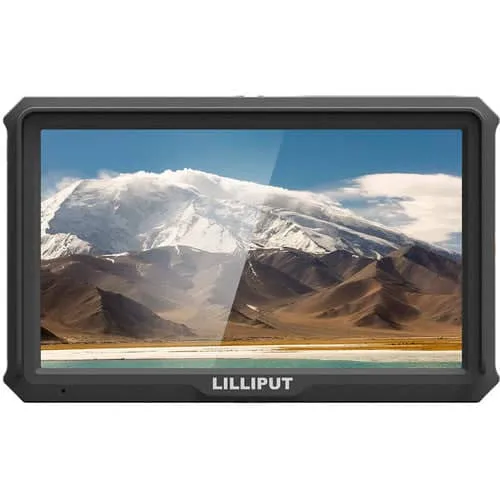

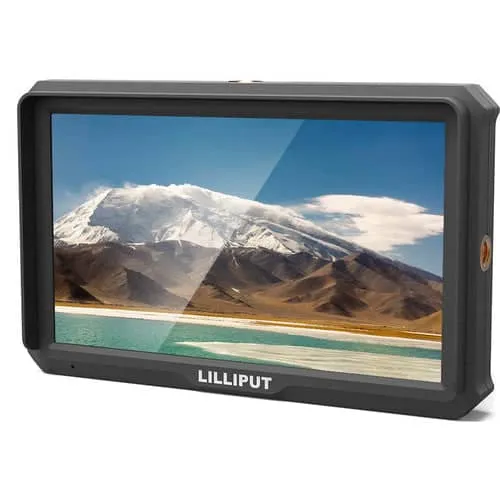

Full HD Display

The Full HD display supports up to UHD 4K30 input and features 1920 x 1080p resolution, 1000:1 contrast ratio, and 460 cd/m² brightness

Lightweight

The compact, lightweight monitor weighs less than five ounces

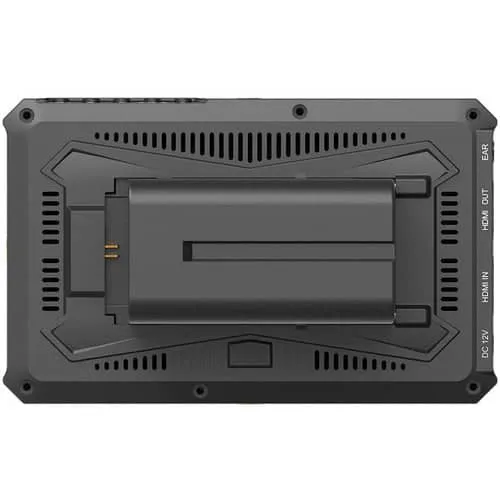

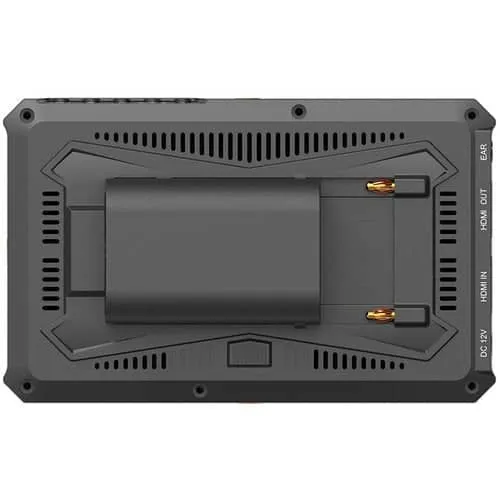

Dual Battery Plate

The built-in dual-purpose battery plate supports both L-Series/F-970 and LP-E6 type batteries

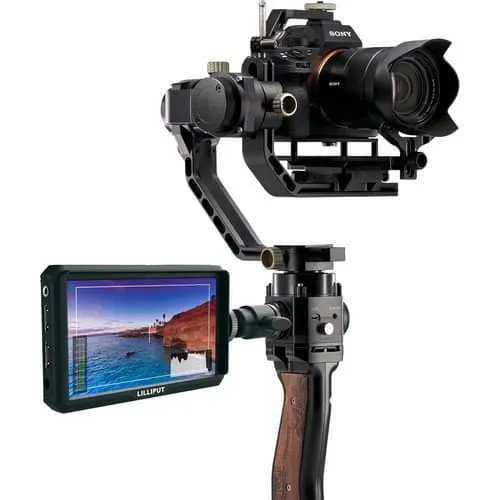

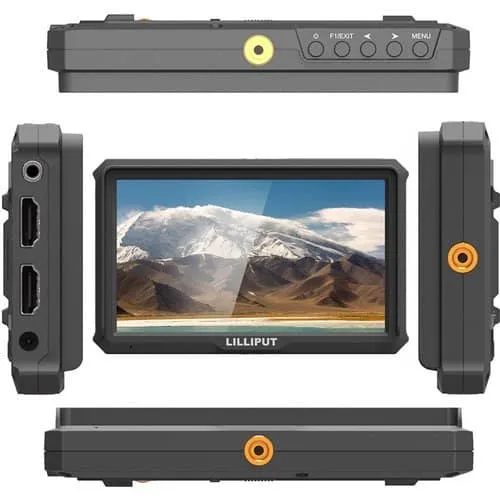

Mounting Options

The monitor features a 1/4"-20 mounting thread which accommodates the included ball shoe mount

Monitoring Tools

Analyze the incoming video signal with built-in video monitoring tools to achieve correct exposure, focus, and colour balance. Built-in functions include:

Timecode display

Pixel zoom

Pixel-to-pixel

Audio level meters

Check exposure

Check field

Focus peaking

False-colour

Histogram

Zebra

Colour bars

Image flip
