FEATURES:



• Combines NewTek’s real-time video, audio and encoding tools with Wowza™ streaming software
• Stream directly to Facebook Live, Microsoft Azure, Ustream, Wowza Streaming Cloud, YouTube Live, and more
• Distribute locally to hundreds of viewers on your network without additional servers—or even an Internet connection
• Multi-channel streaming with 4 independent video channels and support for any combination of SDI or NDI® video sources
• Simultaneously operates as a 4-channel NDI video source, introducing additional capabilities into IP environments



SPECIFICATIONS:



Local Video Input:

• 4 x 3G/HD/SD-SDI inputs



Network Video Input:

• 4 x IP inputs via NDI®



Local Video Output:

• 1 x DVI or HDMI user interface with multiviewer



Network Video Output:

• 4 x IP source outputs via NDI



Local Audio Input:

• 4 x SDI embedded
• 1 x 2 Balanced XLR (Line)
• 3 x 2 Balanced 1/4” (Line)



Network Audio:

• Native support for network audio input and output via NDI
• Embedded audio supported for all NDI input and output video signals
• Integrated support1 for Dante™ networking protocol from Audinate®



Supported SDI Input Formats:

• 1080p 59.94, 1080p 50, 1080p 29.97, 1080p 25, 1080p 24, 1080p 23.98
• 1080i 59.94, 1080i 50
• 720p 59.94, 720p 50, 720p 29.97, 720p 25, 720p 24, 720p 23.98
• 576i 50
• 480i 59.94



Encoding:

• 4 x RTMP streams via integrated NewTek streaming encoder



Streaming Delivery:

• 4 x independent streams with support for Adobe® Flash® RTMP (RTMPE, RTMPT, RTMPTE, RTMPS), Apple® HTTP Live Streaming (HLS), MPEG-DASH, and WOWZ™, and simultaneous stream file archive



Streaming Targets:

• Independently configurable per video stream, with support for multiple selections and configurable presets



Streaming Profiles:

• Independently configurable per video stream, with presets included in formats up to 1080p 60



Web:

• Built-in webpage available per video stream for local network viewing, with hosted media player, embed codes, and direct editing supported via HTML and CSS



Monitoring:

• Integrated multiviewer display with configurable workspaces and viewports



Video Configuration:

• Independently configurable video delay and color correction settings for each video stream, including white balance, proc amp controls and auto color



Audio Configuration:

• Independently configurable audio delay, automatic gain control, and manual audio channel level controls for each video stream



Signal Monitoring:

• Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709



Processing:

• Video: Floating Point YCbCr A 4:4:4:4
• Audio: Floating Point, 48 kHz



A/V Standards:

• 3G-SDI video conforms to SMPTE 424M (Level A)
• HD-SDI video conforms to SMPTE 292M
• SD video conforms to SMPTE 259M and ITU-R BT.656
• Analog audio levels conform to SMPTE RP-155



NIC:

• 2 x 1 Gigabit NIC



System Physical:

• 1RU chassis with 180W PSU
  • 19.0 x 1.75 x 16.75 in (48.3 x 4.5 x 42.5 cm) with rack ears attached
  • 15 lbs (6.8 kg)





INCLUDED:

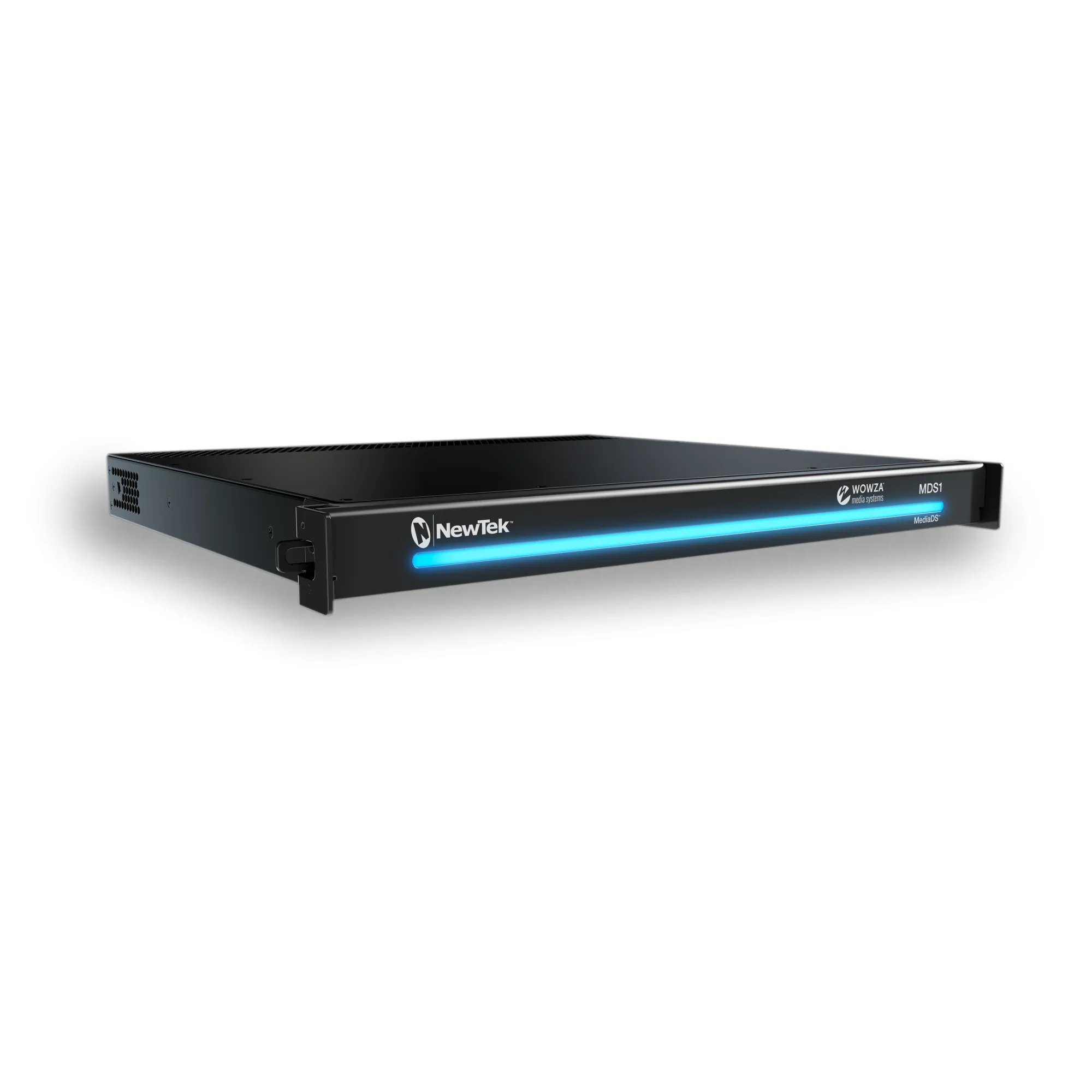

• (1) MediaDS
