SmallHD Cine 7 Sony Venice Bundle

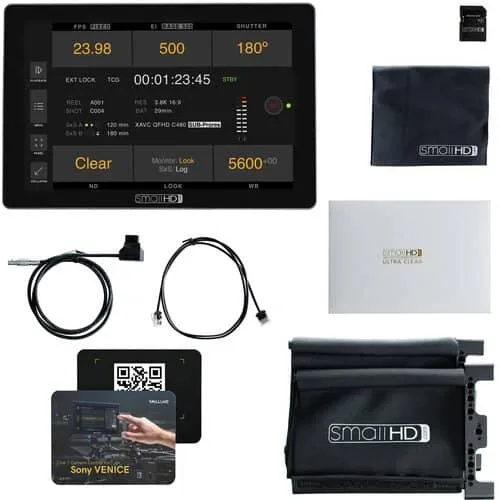

Use the lightweight 7" Cine 7 Touchscreen Monitor with Sony VENICE Camera Control Kit from SmallHD to provide professional monitoring for your Sony VENICE camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Cine 7 monitor, an L-series battery mount, a sun hood, a screen protector, an 8GB SD card, and the Sony VENICE camera control kit that includes software and an Ethernet control cable.
The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

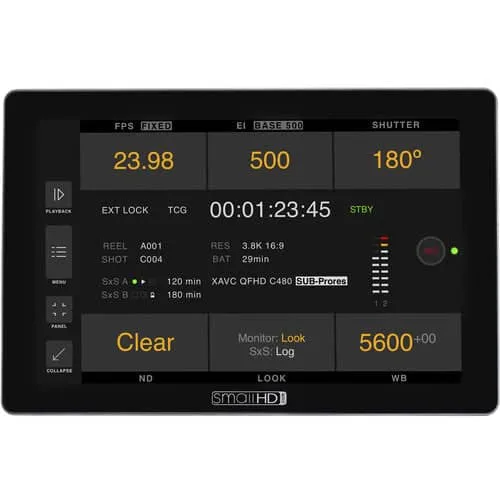

The VENICE control software loads onto the monitor and allows you to control Sony camera functions protocol such as run/stop, ND filters, fps, status, color temperature, LUT configuration, playback, shutter, timecode, media status, battery status, and menu control, all via the Cine 7 touchscreen. The control cable, SDI cable, and USB-to-LEMO adapter allow the monitor to connect to the camera.
The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive Swipe OS3, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series battery mount enables you to power the unit.
Features:
Daylight-viewable, 7" touchscreen on-camera monitor with 1800 cd/m² brightness

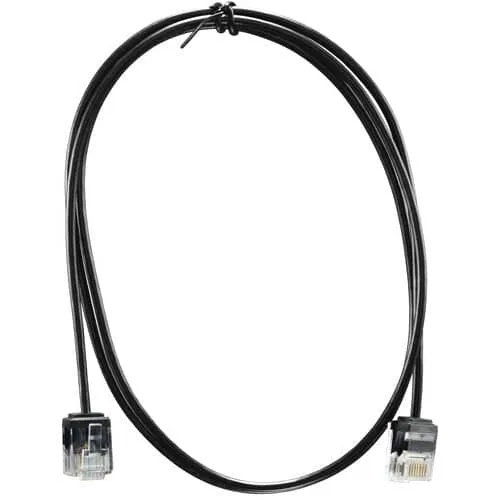

Sony VENICE camera control kit includes control software and Ethernet control cable
Sony VENICE control kit controls functions such as run/stop record, ND filter selection, fps, shutter speed, ISO, color temperature/white balance, partial LUT configuration, clip playback, timecode, media status, fps, resolution, battery info, and recording format
Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs
HDMI-to-SDI and SDI-to-HDMI cross conversion is supported
Uses SmallHD PageOS to organize and save customized function and settings pages
Power with an L-series battery plate
Four 1/4"-20 mounting points on top, left, right, and back
An 8GB SD card, screen protector, sun hood, and cleaning cloth are included
Software
Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Dual zebra: Customizable
Waveform: Luma and RGB, customizable with region of interest highlighting
Vectorscope: Yes
RGB parade: Customizable
Histogram: Luma and RGB
Image capture: With dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Audio meters: HDMI and SDI up to 8 channels
